Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.
  • Brake pads must be renewed in axle sets only. Failure to follow this instruction may result in braking efficiency being impaired.
CAUTION: Take care not to contaminate the brake pad friction materials or the brake discs.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

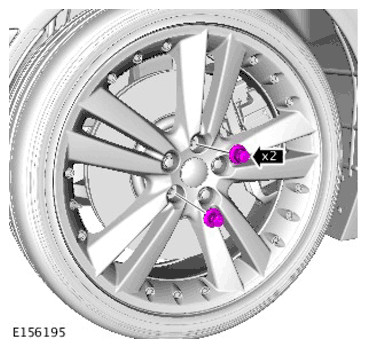

  2. G11297217

    Remove 2 opposing wheel nuts.

    Torque Specification: 125 Nm

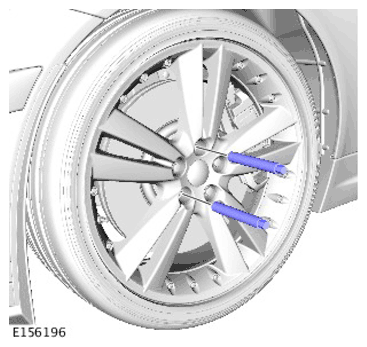

  3. G11297218

    Install the wheel guide tools. (Located in the vehicle tool kit.)

    Torque Specification: 20 Nm

  4. CAUTION: The brake disc can be easily damaged. Take extra care when removing and installing the wheel.

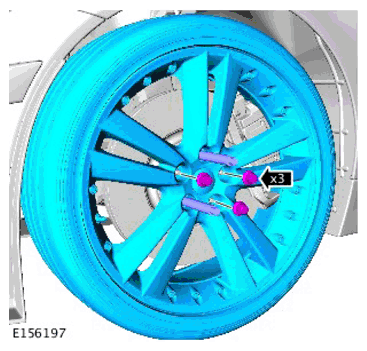

    G11297219

    Remove the remaining wheel nuts and slide the wheel and tire over the guide tools.

    Torque Specification: 125 Nm

  5. G11511570
  6. NOTE: Note the orientation of the anti-rattle spring prior to removal.

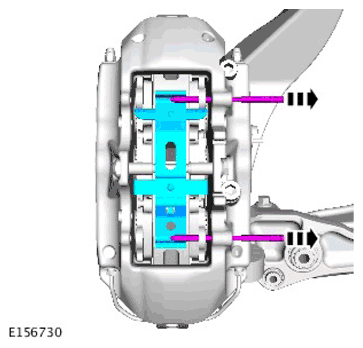

    G11297220

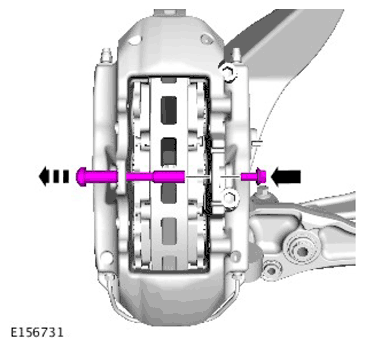

  7. G11297221

    Torque Specification: 30 Nm

  8. CAUTION: The brake disc can be easily damaged. Do not strike or lever on the brake disc.
    NOTE: Note the orientation of the brake pads prior to removal.

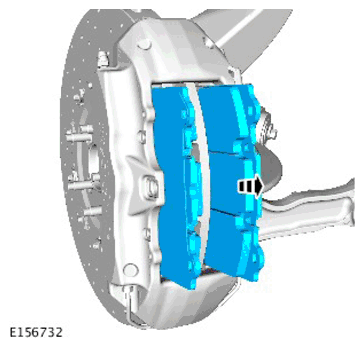

    G11297222

    Remove the brake pads.

  9. NOTE: Note the orientation of the brake pad shims prior to removal.

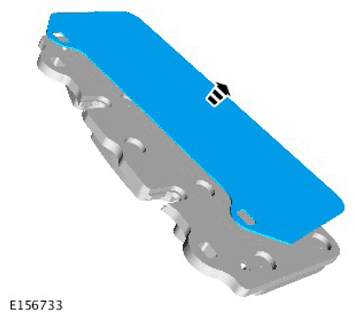

    G11297223

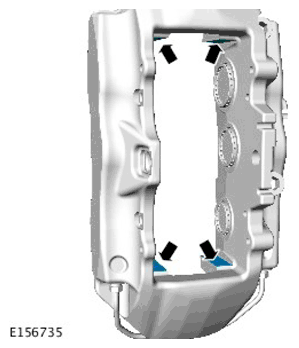

  10. G11297238

    Clean and inspect the brake caliper at the brake pad contact points.

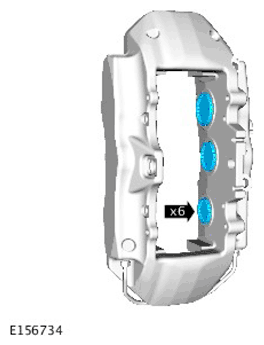

  11. G11297239

    Inspect the caliper pistons, seals and brake discs for damage.

  12. CAUTION:
    • Check the brake fluid reservoir level before pushing the piston back, failure to follow this instruction may result in damage to the vehicle.
    • The brake disc can be easily damaged. Do not strike or lever on the brake disc.
    NOTE: As the piston is pushed back into the caliper housing, the brake fluid level in the reservoir will rise. Do not allow the reservoir to overflow.

    Press the pistons into the caliper housing.

  13. Repeat this procedure for the other side.
