Component Location

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

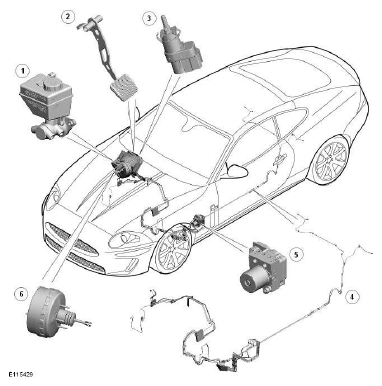

G11512030
ITEM DESCRIPTION
1 Brake master cylinder and fluid reservoir
2 Brake pedal
3 Stoplamp switch
4 Brake pipes
5 ABS (anti-lock brake system) module
6 Brake booster
