Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.

NOTE: LH illustration shown, RH is similar.

Remove the air intake cover.
- Remove the 4 clips.
Siphon the fluid from the brake master cylinder.
- Position an absorbent cloth to collect fluid spillage.
Disconnect the low brake fluid warning indicator switch electrical connector.
CAUTION: Always plug any open connections to prevent contamination.

NOTE: Some fluid spillage is inevitable during this operation.

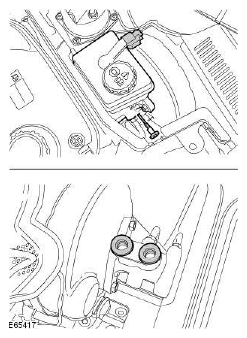

Remove the brake fluid reservoir.

Remove the Torx bolt.
Remove and discard 2 brake fluid reservoir seals.
