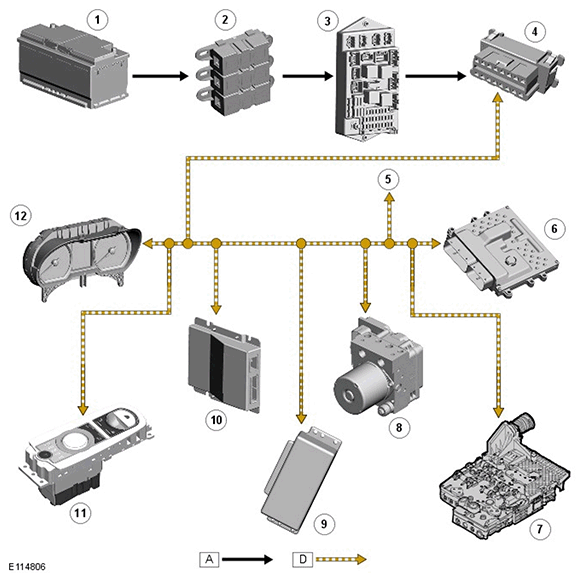

Control Diagram

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: A = Hardwired; D = High speed CAN bus

ITEM	DESCRIPTION
1	Battery
2	175 A megafuse
3	CJB (central junction box) fuse 17
4	Diagnostic socket
5	High speed CAN connection to other systems
6	ECM
7	TCM
8	ABS module
9	DLM
10	ADCM
11	JaguarDrive selector module
12	Instrument cluster
