Vacuum Pipes
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

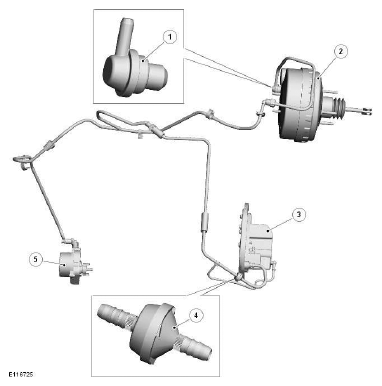

RHD naturally aspirated installation shown, other installations similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Brake booster connector/check valve |
| 2 | Brake booster |
| 3 | Intake manifold rear cover |
| 4 | In-line check valve |
| 5 | Vacuum pump |
Plastic pipes connect the brake booster to the intake manifold and the vacuum pump to provide the vacuum for the brake booster. The connection with the brake booster contains a check valve to maintain the vacuum in the brake booster. An in-line check valve near the connection with the intake manifold prevents air being drawn from the intake manifold and fuel vapor from entering the pipes.
