Component Location - Naturally Aspirated Vehicles

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

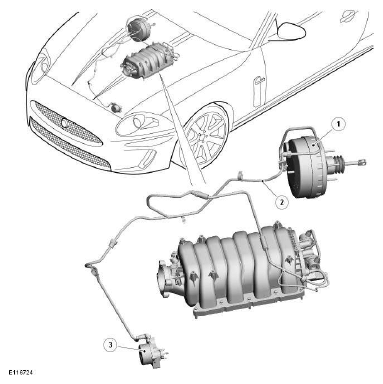

NOTE: RHD (right-hand drive) installation shown, LHD (left-hand drive) installation similar.
G11512074
ITEM DESCRIPTION
1 Brake booster
2 Vacuum pipes
3 Vacuum pump
