Battery Tester Results Table

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

RESULTS	ACTION
GOOD BATTERY	Return the battery to service

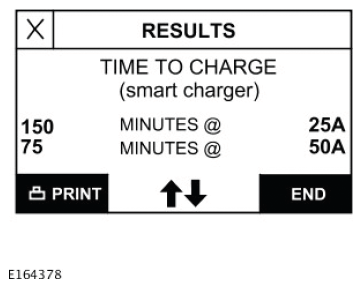

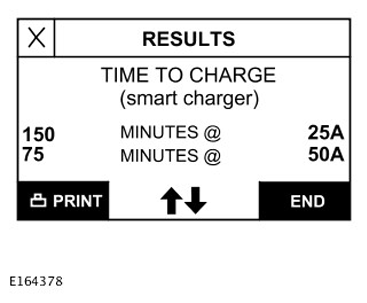

CHARGE AND RETEST	NOTE: To support a Warranty Claim, TEST CODE details for Before Charging and After Charging must be supplied in the technical comments box of the Warranty Claim. When the battery test result equals CHARGE & RETEST, view the TIME TO CHARGE screen using the scroll arrow keys on the Battery Tester panel
	Follow the 50AMP charge time for all vehicles, except Defender which can be charged with a 25 Amp charger
	Follow the recommended action in the test results
	If the second battery test result equals CHARGE & RETEST the battery must be replaced

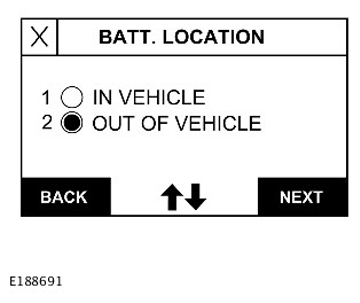

REPLACE BATTERY OR BAD CELL-REPLACE	Repeat the test with the battery disconnected from the vehicle. Ensure OUT OF VEHICLE is selected as the Battery Location for the repeat test Follow the instructions as per the test result For a repeat REPLACE BATTERY or BAD-CELL test result, DO NOT ATTEMPT TO RECHARGE THE BATTERY, REPLACE THE BATTERY
FROZEN BATTERY	Allow the battery to thaw naturally in workshop conditions and retest
UNABLE TO DO TEST	Disconnect the battery from the vehicle and retest
