Power Distribution Box

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

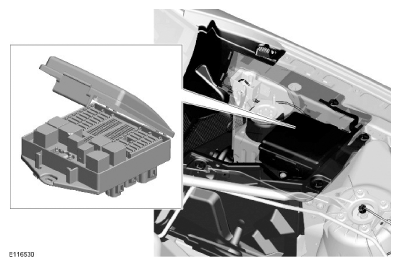

The power distribution box is located in the LH rear of the engine compartment, beneath a closing panel. The power distribution box is supplied electrical power from the BJB, via the CJB.
