Component Location

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

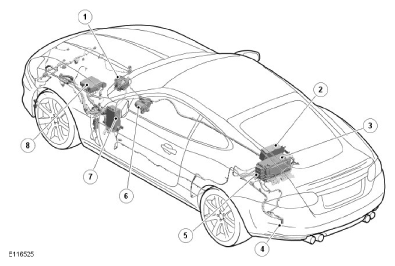

G11516063
ITEM DESCRIPTION
1 Generator
2 AJB (auxiliary junction box)
3 Battery
4 Remote jump start terminal
5 BJB (battery junction box)
6 Starter motor
7 CJB (central junction box)
8 Power distribution box
