Description And Operation: Battery: Notes
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

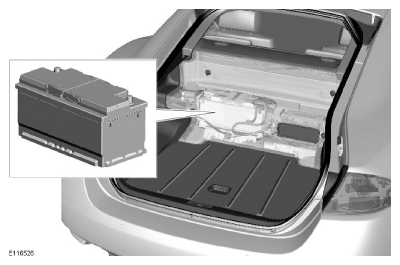

The battery is located behind a cover at the front of the luggage compartment. The cover is held in place by four retainers. The battery sits in a tray and is secured with a clamp plate and two nuts.
The positive and negative battery cables are fitted with service loops. The service loops add extra length to the cables and allow the battery to be slid rearward in the luggage compartment without disconnection.
