Battery Junction Box

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
G11516066

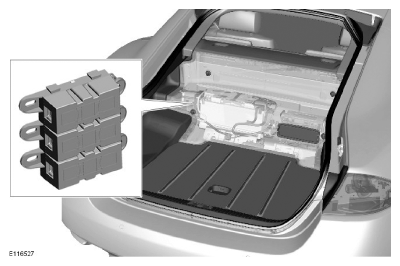

Mounted on the LH side of the battery is the BJB (battery junction box). The BJB contains three megafuses delivering battery power to: the starter motor (400 A); the AJB (auxiliary junction box) (175 A) and the CJB (175 A).
