Auxiliary Junction Box: Notes
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

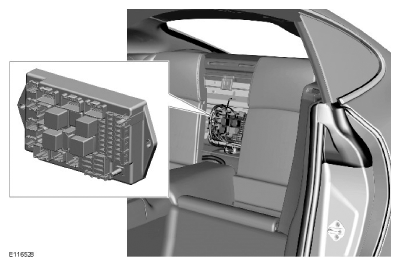

The AJB is mounted on the passenger compartment rear bulkhead and secured by two nuts/studs. The junction box can be accessed by opening the center panel of the rear seat back. The center panel is secured in position by a single stud at the top, and hinged at the bottom.
The auxiliary junction box receives electrical power from the BJB via a 175 A megafuse.
