Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The pedestrian protection module must be renewed if the system has deployed on 3 occasions.
  1. Make the pedestrian protection system safe.
  2. Remove the front LH fender splash shield.

    For additional information, refer to: Fender Splash Shield

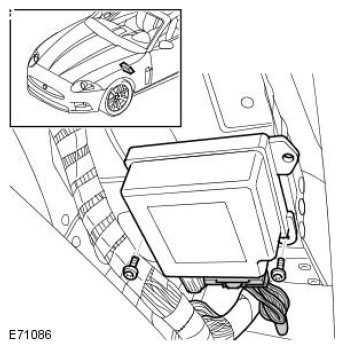

  3. See Figure
    G11549416

    Remove the pedestrian protection module.

    • Remove and discard the 2 Torx bolts.
    • Disconnect the electrical connector.
