Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Make the pedestrian protection system safe.
  2. Remove the pollen filter.

    For additional information, refer to: Pollen Filter

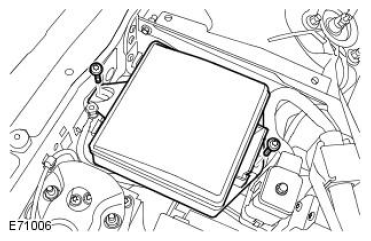

  3. See Figure
    G11549422

    Release the power distribution box and position aside.

    • Remove the 2 Torx screws.
  4. Release the pedestrian protection actuator bracket.
    • Release the 3 wiring harness clips.
    • Remove the 4 bolts.
  5. See Figure
    G11523935

    Remove the pedestrian protection actuator and bracket.

    • Disconnect the electrical connector.

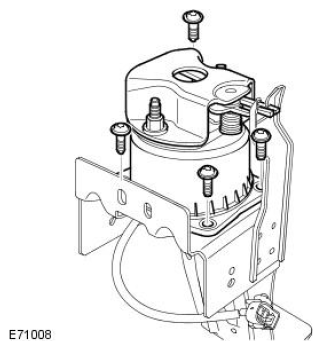

  6. See Figure
    G11549424

    Remove the pedestrian protection actuator.

    • Remove and discard the 4 Torx bolts.
