Hood Actuator-Deployed

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

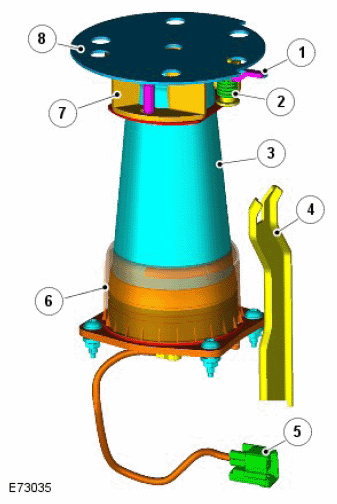

G11305955
ITEM DESCRIPTION
1 Secondary hood latch
2 Secondary hood latch spring
3 Tether cone
4 Secondary hood latch retaining bracket
5 Electrical connector
6 Hood actuator
7 Secondary hood latch body
8 Secondary hood latch striker plate
