Pedestrian Contact Sensor
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

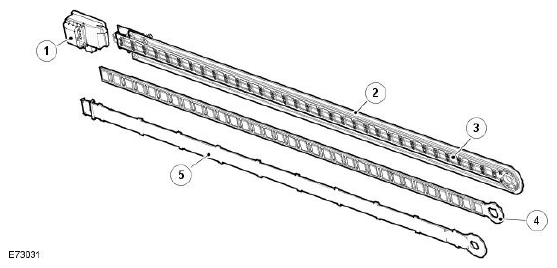

| ITEM | DESCRIPTION |
|---|---|
| 1 | Sensor module |
| 2 | Sensor backing strip/rear cover |
| 3 | Fibre optic cable |
| 4 | Foam insert |
| 5 | Sensor front cover |
The PCS is located in a slot behind the bumper foam on the front bumper beam and is secured with a single fixing.
At the end of the sensor next to the fixing there is a PCB (printed circuit board) and fibre optic transceiver, which is connected to a fibre optic cable configured in a loop. The PCS uses this fibre optic loop to detect an impact by measuring the amount of light returned to the fibre optic transceiver. A reduction in light levels occurs when the PCS is deformed by an impact. The PCS monitors the level of light returned from the loop, if a reduction of a predetermined magnitude is measured a trigger signal will be sent to the control module.
