Hood Actuator: Notes
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

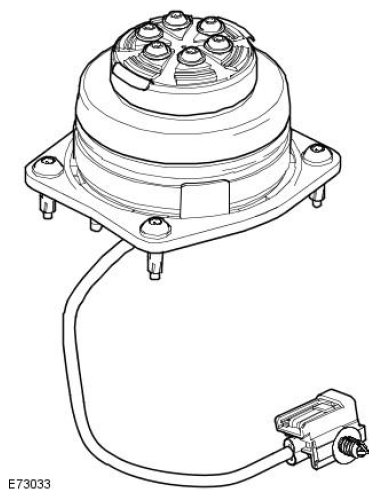

The hood actuators are pyrotechnic air bags. The hood actuators are located just forward of the hood latches on either side of the hood. The actuators comprise a pyrotechnic device to raise the hood, a secondary hood latch mechanism and a tether sleeve. Once fired a locking device mounted on top of the actuator couples with the secondary hood latch before the air bag inflates to raise the hood. This ensures that the hood can only deploy to a pre-determined height (approximately 130 mm (5.1 in.). As the hood actuator is fired two prongs located in the secondary latch housing are moved out of their retaining clamp. The prongs are spring loaded to grip the secondary hood latch striker securing it to the actuator tether cone.
