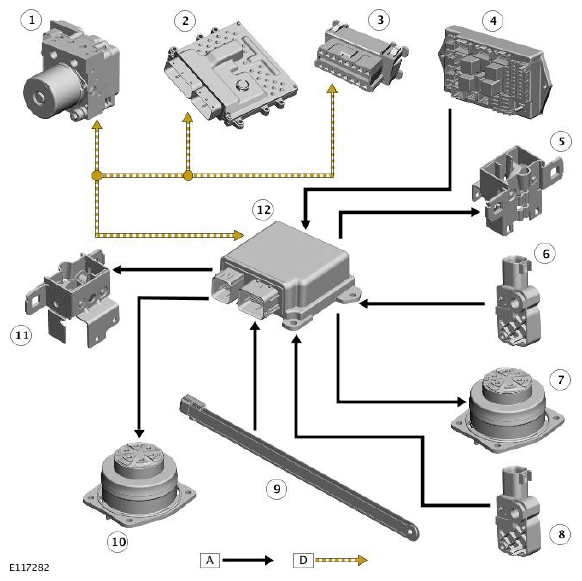

Control Diagram
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired; D = High speed CAN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | ABS (anti-lock brake system) module |
| 2 | ECM (engine control module) |
| 3 | Diagnostic socket |
| 4 | AJB (auxiliary junction box) |
| 5 | Hood latch |
| 6 | Accelerometer |
| 7 | Hood actuator |
| 8 | Accelerometer |
| 9 | PCS |
| 10 | Hood actuator |
| 11 | Hood latch |
