Component Location

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

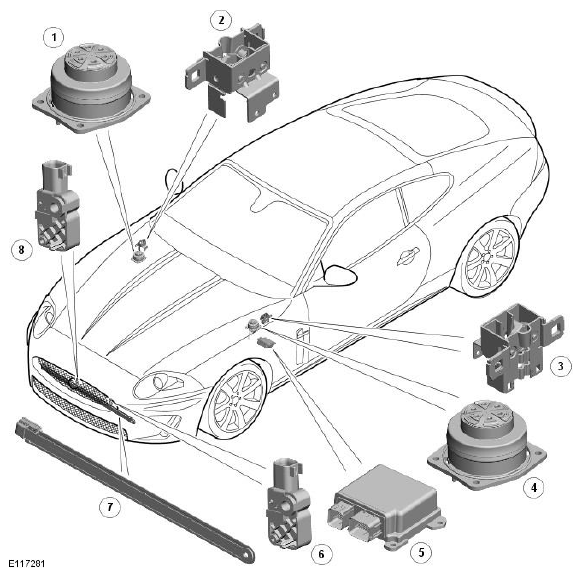

G11549406
ITEM DESCRIPTION
1 RH (right hand) hood actuator
2 RH hood latch
3 LH (left hand) hood latch
4 LH hood actuator
5 Pedestrian protection system control module
6 LH accelerometer
7 PCS (pedestrian contact sensor)
8 RH accelerometer
