Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the luggage compartment lid trim panel.
  2. Remove the luggage compartment lid latch operating cable from the lock cylinder.
    • Release the cable from the clip.

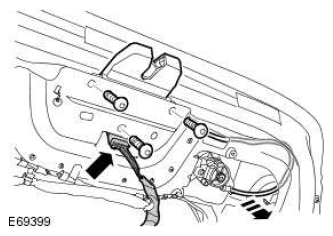

  3. G11524499

Remove the luggage compartment lid latch assembly.
