Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the navigation system display module.

    For additional information, refer to: Navigation System Display Module

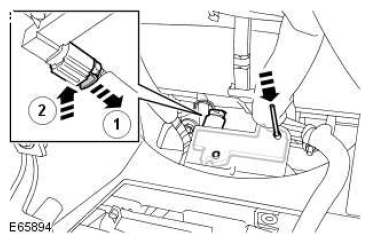

  2. G11524507

Remove the keyless vehicle antenna.
