Removal And Installation: Removal
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the pedestrian protection actuator and bracket.
For additional information, refer to: Pedestrian Protection Hood Actuator LHPedestrian Protection Hood Actuator RH

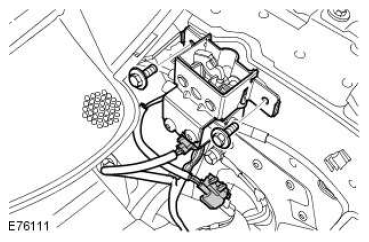

Release the hood latch.
- Remove the 2 bolts.
- Disconnect the 2 electrical connectors.

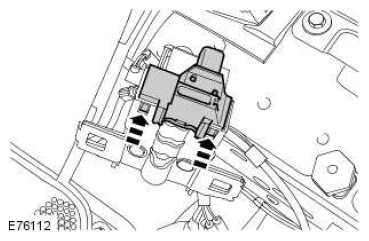

Remove the hood switch.
- Release the 2 clips.

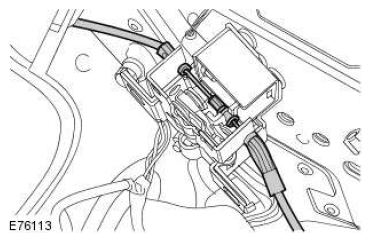

Remove the hood latch.
- Release the latch cable.

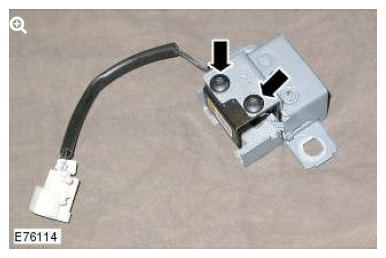

Remove the pedestrian protection latch actuator.
- Remove and discard the 2 Torx bolts.
- Disconnect the 2 electrical connectors.
