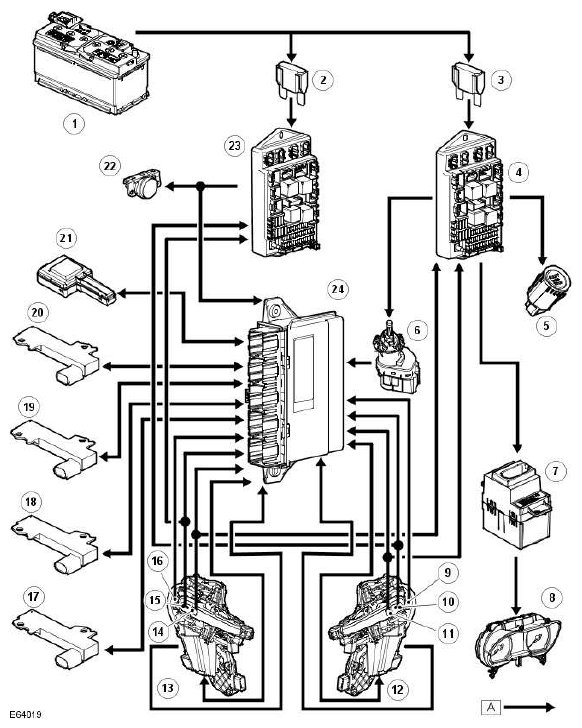

Control Diagram - Passive Entry System
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Megafuse (175A) |
| 3 | Megafuse (175A) |
| 4 | CJB |
| 5 | Start/Stop switch |
| 6 | Stop lamp switch |
| 7 | Start control module |
| 8 | Instrument cluster |
| 9 | LF antenna (LH exterior door handle - only with passive entry option fitted) |
| 10 | Unlock pull switch |
| 11 | Lock push switch |
| 12 | LH Door handle, latch motor and clutch |
| 13 | RH door handle, latch motor and clutch |
| 14 | Lock push switch |
| 15 | Unlock pull switch |
| 16 | LF antenna (RH exterior door handle - only with passive entry option fitted) |
| 17 | LF antenna (rear bumper - only with passive entry option fitted) |
| 18 | LF antenna (battery bracket) |
| 19 | LF antenna (center console) |
| 20 | LF antenna (Instrument panel) |
| 21 | RF remote receiver |
| 22 | Exterior liftgate release switch |
| 23 | Auxiliary junction box |
| 24 | Keyless vehicle module |
