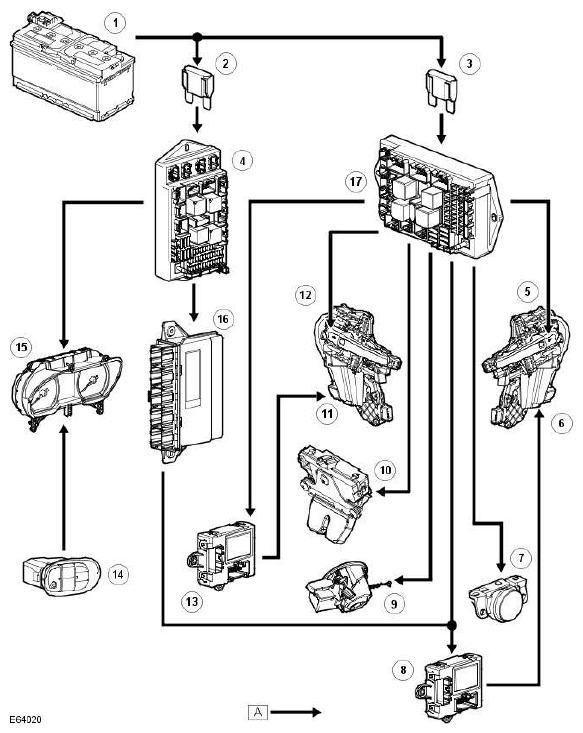

Control Diagram - Central Locking System
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Megafuse (175A) |
| 3 | Megafuse (175A) |
| 4 | CJB |
| 5 | LH door handle pull switch |
| 6 | LH door latch motor assembly |
| 7 | Liftgate external release switch |
| 8 | LH door module |
| 9 | Fuel flap motor |
| 10 | Liftgate motor assembly |
| 11 | RH door latch motor assembly |
| 12 | RH door handle pull switch |
| 13 | RH door module |
| 14 | Auxiliary lighting switch (Liftgate and fuel flap release switches) |
| 15 | Instrument cluster |
| 16 | Keyless vehicle module |
| 17 | Auxiliary junction box |
