Component Location - Central Locking System (Sheet 2 Of 2)
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

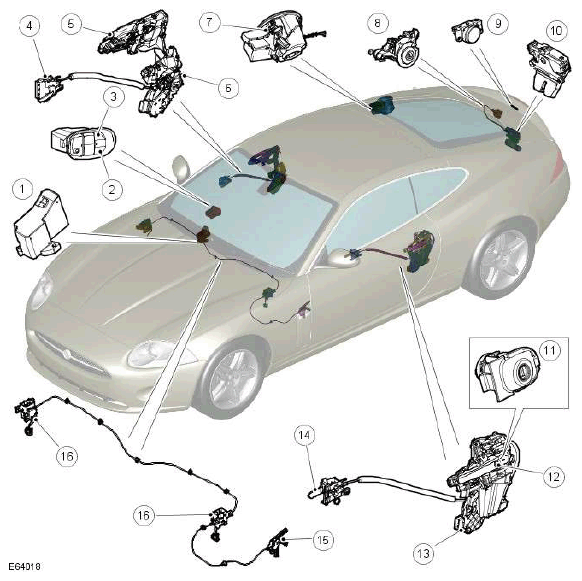

| ITEM | DESCRIPTION |
|---|---|
| 1 | Electric steering column lock |
| 2 | Fuel flap release switch |
| 3 | Liftgate release switch |
| 4 | RH interior door handle |
| 5 | RH exterior door handle |
| 6 | RH door latch and motor |
| 7 | Fuel flap release motor |
| 8 | Liftgate emergency key barrel |
| 9 | Liftgate external release switch |
| 10 | Liftgate latch and motor |
| 11 | Door emergency key barrel (LH door only) |
| 12 | LH exterior door handle |
| 13 | LH door latch and motor |
| 14 | LH interior door handle |
| 15 | Hood release lever |
