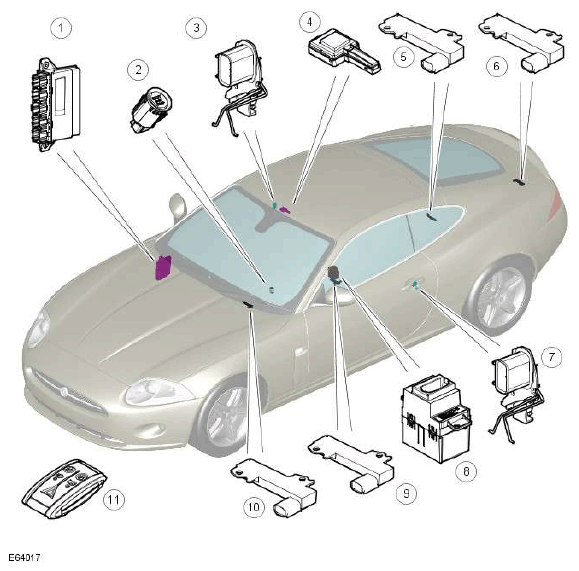

Component Location - Central Locking System (Sheet 1 Of 2)
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Keyless vehicle module |
| 2 | Start/Stop button |
| 3 | Right Hand (RH) door handle keyless LF antenna (only with passive entry option fitted) |
| 4 | Central locking RF receiver |
| 5 | LF antenna (located on battery bracket) |
| 6 | LF antenna (located in rear bumper - only with passive entry option fitted) |
| 7 | Left Hand (LH) door handle keyless LF antenna (only with passive entry option fitted) |
| 8 | Start control module |
| 9 | LF antenna (center console) |
| 10 | LF antenna (instrument panel) |
| 11 | Smart Key |
