Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect
  2. Refer to: Engine Cover - 5.0L
    3. CAUTION: Be prepared to collect escaping coolant.
  3. G11288194
  4. G11288195

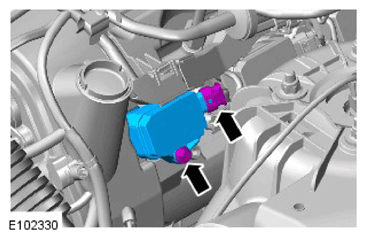

  5. G11297748

    Torque Specification: 7 Nm
