Removal And Installation: Installation
WARNING: This page is about a different car, the 2015 Jaguar XK, 2014 Jaguar XK, 2013 Jaguar XK, and 2012 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.
Apply RTV sealant (Loctite 5901G) in a 2-3mm diameter to the areas shown, and install the engine rear oil seal plate within 7 minutes.
Special Tool(s): 303-1442
Install the special tool.
Special Tool(s): 303-1442
Special Tool(s): 303-1442
Install the bolts and maintain the clearance of 8mm.
Special Tool(s): 303-1442
Remove the special tool.
Special Tool(s): 303-1442

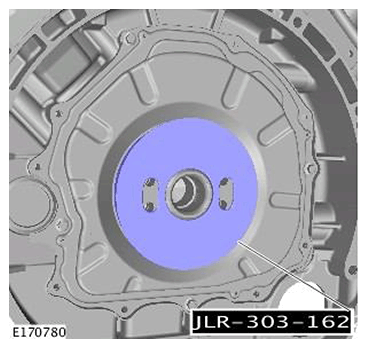

Special Tool(s): JLR-303-1622
-
Using the special tool, install the component.
Special Tool(s): JLR-303-1622
Torque Specification: 11 Nm
Remove the special tool.
Special Tool(s): JLR-303-1622
Torque Specification: 11 Nm
- Refer to: Flexplate
CAUTION:
CAUTION:
Make sure that the Land Rover approved sealant, covers the mating faces of the cylinder block and the oil pan.
CAUTION:
Make sure that the special tool is correctly located.
NOTE:
Install the bolts finger tight.
CAUTION:
Do not fully install the component. Maintain a clearance of 8mm, between the rear oil seal plate and the cylinder block, as smearing of the sealant may occur.
CAUTION:
Apply pressure to the rear oil seal plate in the sequence shown, when installing the special tool.
NOTE:
Tighten the bolts in the indicated sequence.
