Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. NOTE: Note the fitted position of the washers.

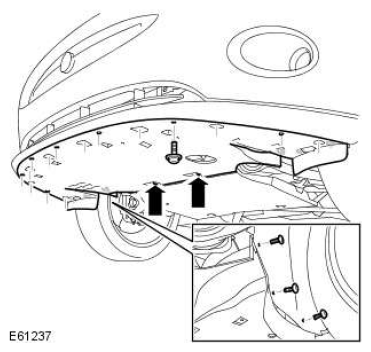

    G11523997

    Remove the radiator splash shield.

    • Remove the 21 Torx bolts.
    • Remove the 2 screws.
  3. NOTE: Do not disassemble further if the component is removed for access only.

    Remove the 13 clips.

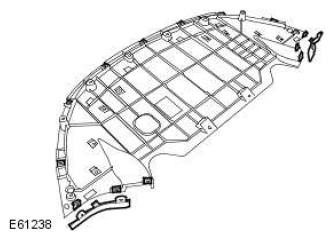

  4. G11523998

    Remove the 2 air deflectors.

    • Release the 2 clips.
