Overhead Console: Removal

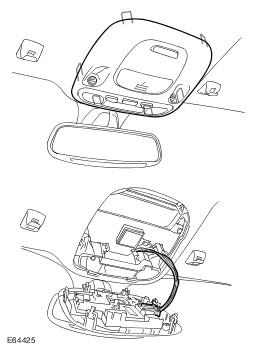

  1. Remove the front overhead console.
    • Release from the 6 clips.
    • Disconnect the electrical connector.
    GJ0009053
