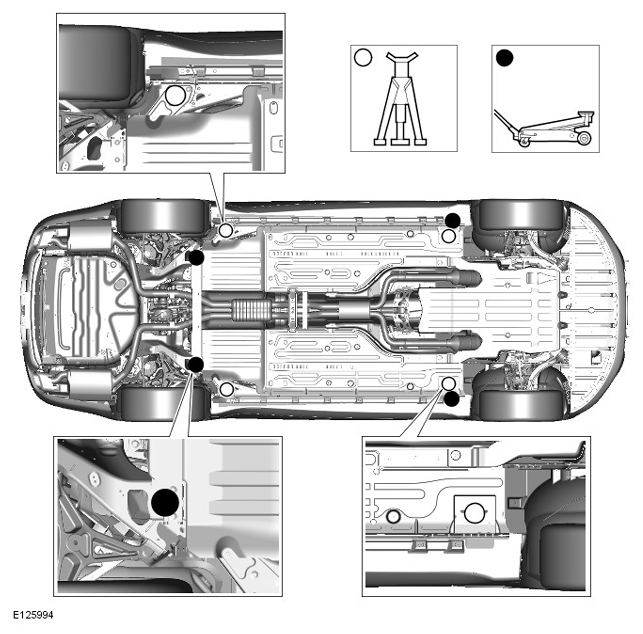

Lifting Points-Floor Jack And Axle Stands

CAUTION:

• If the vehicle is to be lifted using floor jacks, two jacks must be used to raise either the front or rear of the vehicle. If one jack only is used, excessive body twist may occur.
• When using a floor jack to jack up the rear of the vehicle, the jack head must be aimed at the NVH bar securing bolts to aviod fuel tank damage or body damage.
• When using a floor jack, a cushioned pad must be utilized to avoid body damage.
• When using axle stands, a cushioned pad must be utilized to avoid damage to the body or rear subframe assembly.
