Rear Stabilizer Bar (G1274506): Removal

All vehicles

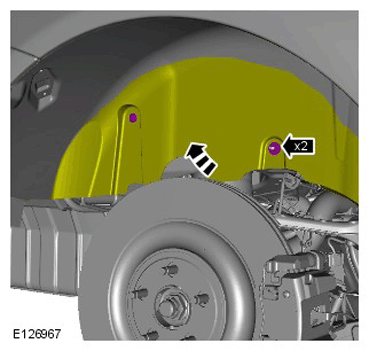

1. WARNING: Make sure to support the vehicle with axle stands.

   Raise and support the vehicle.

2. Remove the rear wheels and tires.

   For additional information, refer to: WHEEL AND TIRE (Removal and Installation).

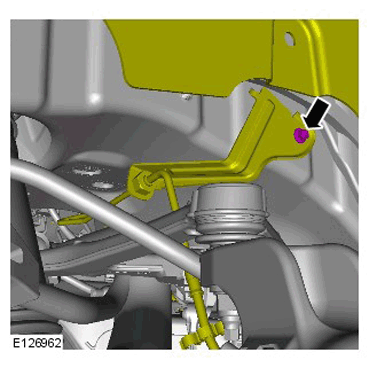

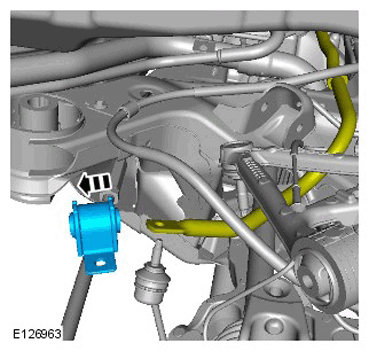

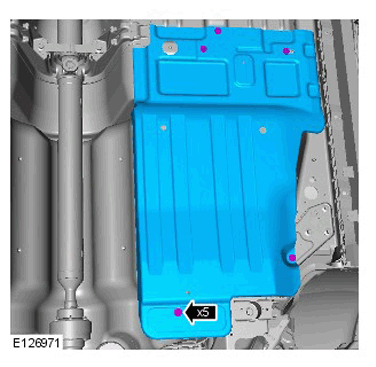

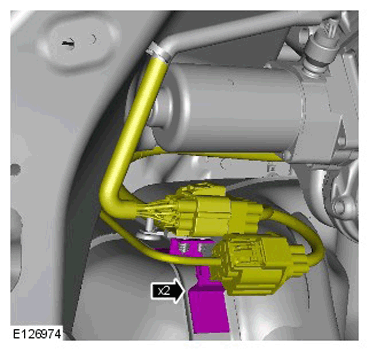

3. NOTE: Repeat the step for the other side.

   Torque Specification: 7 Nm

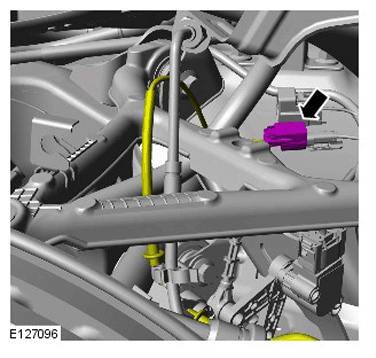

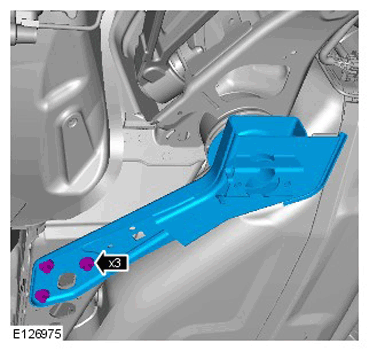

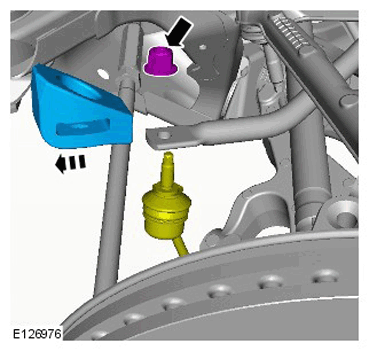

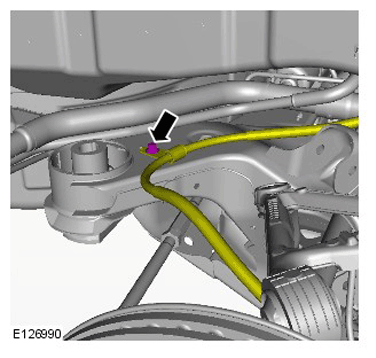

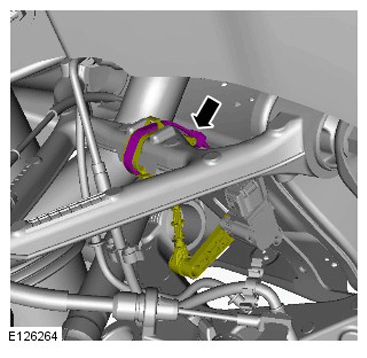

4. NOTE: Repeat the step for the other side.

   Torque Specification: 10 Nm

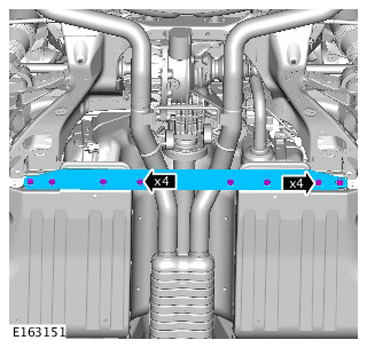

5. NOTE: Repeat the step for the other side.

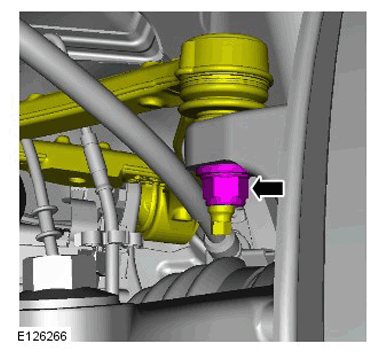

6. NOTE: Repeat the step for the other side.

   Torque Specification: 48 Nm

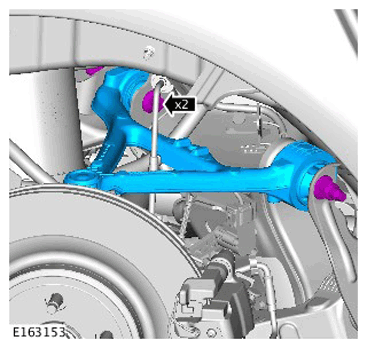

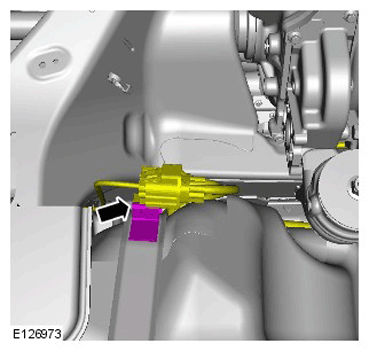

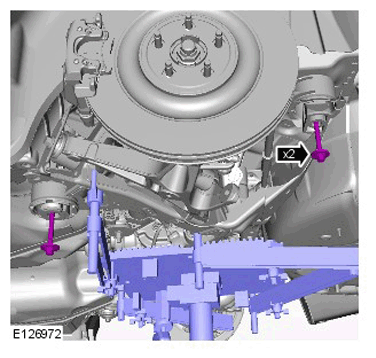

7. NOTE: Repeat the step for the other side.
8. NOTE: Repeat the step for the other side.

   Torque Specification: 96 Nm

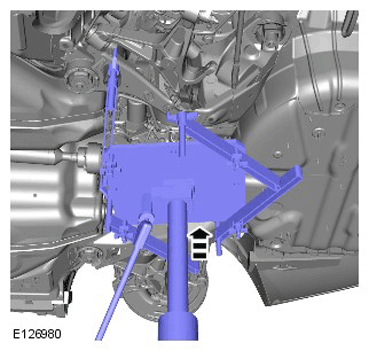

9. Torque Specification: 115 Nm

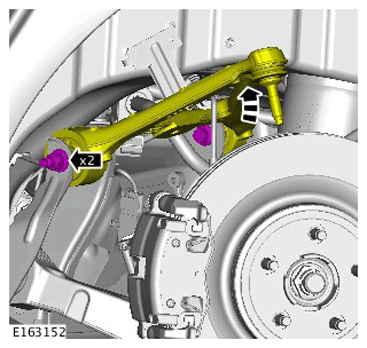

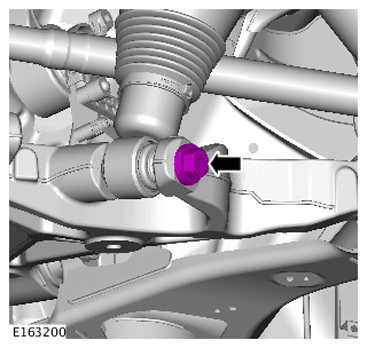

10. NOTE: Move aside for access and secure the arm.

    Torque Specification: 115 Nm

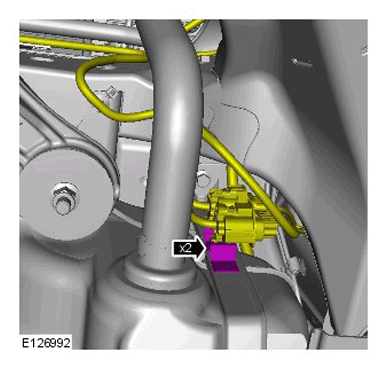

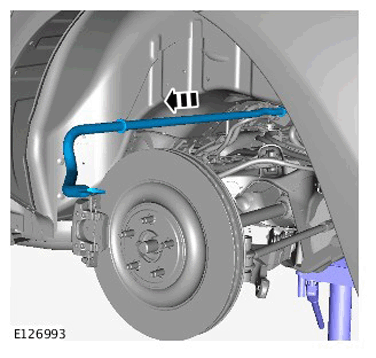

11. NOTE: RH side only.

Vehicles with supercharger

All vehicles

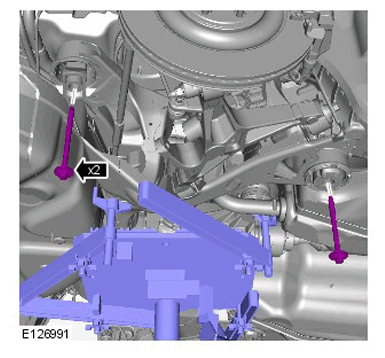

2. CAUTION: Only tighten the nuts and bolts when the suspension is at the normal ride height. Failure to follow this instruction may result in damage to the vehicle.
   NOTE: Repeat the step for the other side.

   Torque Specification: 133 Nm

3. Torque Specification: 30 Nm

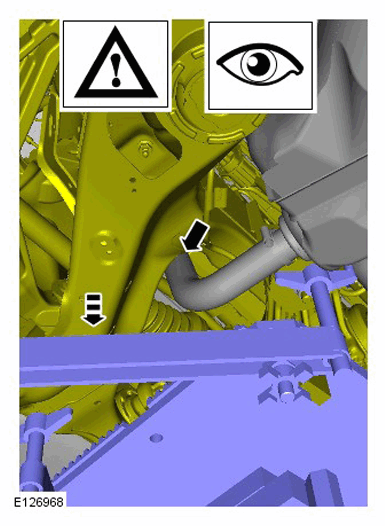

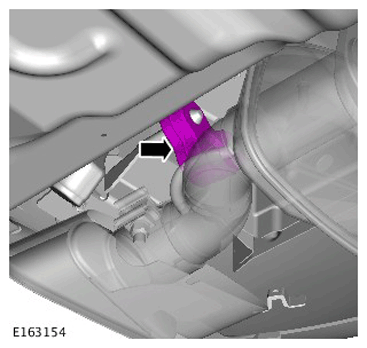

5. CAUTION: Make sure that the exhaust system is supported with suitable retaining straps.
   NOTE: Repeat the step for the other side.

8. Torque Specification: 58 Nm

9. NOTE: Do not tighten at this stage.
10. Repeat the above  4 steps for the other side.

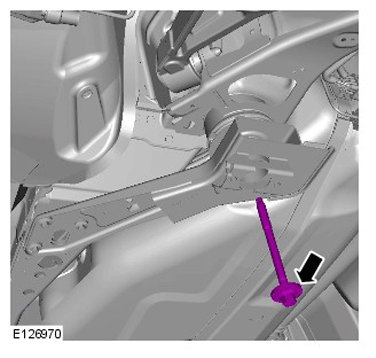

11. NOTE:

    • LH side only.
    • Loosen the bolt, but do not fully remove.

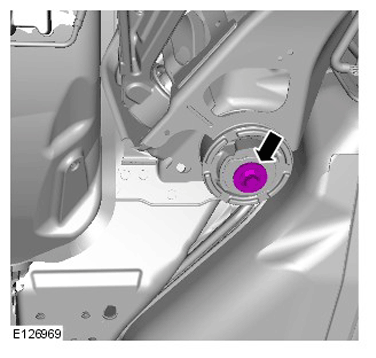

12. CAUTION: Discard the bolts.
    NOTE: RH side only.

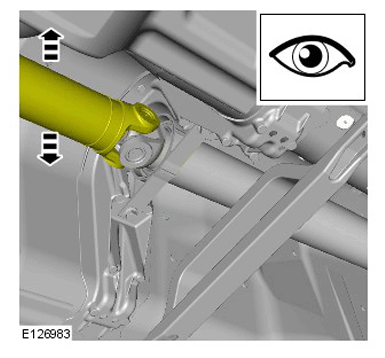

13. Check for correct alignment.

15. NOTE: RH illustration shown, LH is similar.

    Torque Specification: 133 Nm

    Repeat the above step for the other side.

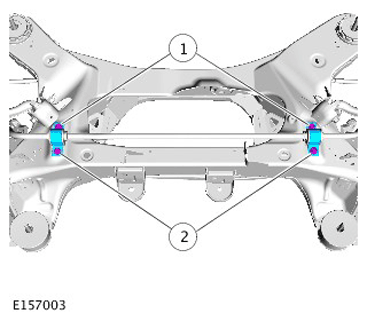

16. During installation tighten the bolts in the following sequence.

    Bolt 1: 55 Nm.

    Bolt 2: 55 Nm.

    Bolt 1: 55 Nm.

17. NOTE: Repeat the step for the other side.
18. NOTE: RH side only.

    Torque Specification: 22 Nm
