Pinpoint Test D: Delamination Tests

  1. D1: DELAMINATION TEST 1

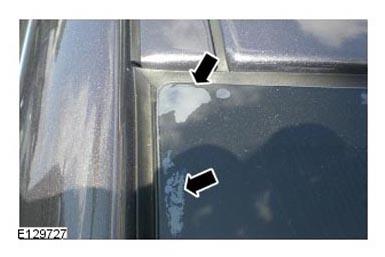

    1. Visually assess the windshield for delamination.
    G11289748

    Have the glass laminates separated?

    • Yes  : Install a new windshield.
    • No  : No further action.
