Rear Glass Roof Panel Lubrication (G1520296): Check

CAUTION:
  • Make sure that the vehicle is clean and dry prior to commencing this procedure.
  • Make sure that the vehicle is kept in a dry environment and is not washed within 24 hours of completing this procedure, failure to follow this instruction will prevent the slip coat from curing correctly.
NOTE: The lubricant used in this procedure (LIP AC612/21) is part of the Squeaks & Rattles Kit. For more information on the Squeaks & Rattles Kit, safety data sheets and details of how to order the kit or parts thereof, please visit (www.squeaksandrattles.info).
  1. Open the roof opening panel glass to the full tilt position.

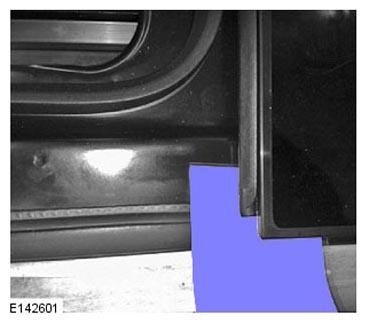

  2. G11289749

    Insert a suitable applicator card in to the position shown at the left hand front corner of the rear glass roof panel.

  3. CAUTION: Make sure that the two areas that are cleaned with the applicator card overlap at the centre of the vehicle.

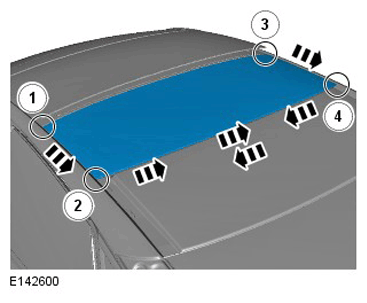

    G11289750
    1. Starting at position 1 in the left hand front corner of the rear glass roof panel, carefully slide the applicator card around the rear glass roof panel through position 2 and past the centre point of the vehicle.
    2. Remove and clean the applicator card.
    3. Starting at position 3 in the right hand front corner of the rear glass roof panel, carefully slide the applicator card around the rear glass roof panel through position 4 and past the centre point of the vehicle.
    4. Remove and clean the applicator card.
  4. CAUTION: Make sure that the bottle is well shaken before applying the fluid to the applicator card.

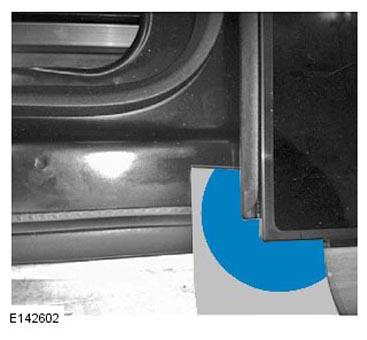

    G11289751
    1. Insert a suitable applicator card in to the position shown at the left hand front corner of the rear glass roof panel.
    2. Spray a sufficient amount of LIP AC612/21 fluid on to the applicator card until the fluid runs between the rear glass fixed panel and the seal.
  5. CAUTION: Make sure that the applicator card does not slip from under the rear glass roof panel as the card is rotated around the corners.
    G11289750
    1. Carefully slide the applicator card along the edge of the rear fixed glass panel to position 2.
    2. Slide the applicator card backwards and forwards from position 1 to 2 to make sure that a sufficient amount of fluid is applied to the rear fixed glass panel.
    3. If required, apply more fluid to the applicator card and repeat the above step.
  6. CAUTION: Make sure that the applicator card does not slip from under the rear glass roof panel as the card is rotated around the corners.

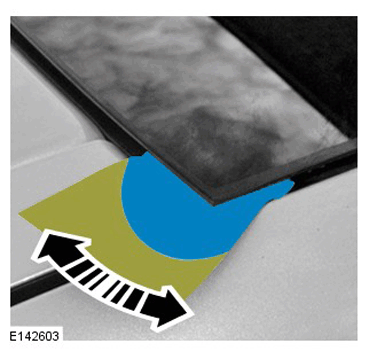

    G11289753
    1. At the position 2, spray a sufficient amount of LIP AC612/21 fluid on to the applicator card until the fluid runs between the rear glass fixed panel and the seal.
    2. Rotate the applicator card backwards and forwards 5 times at the corner of the rear fixed glass panel.
  7. CAUTION: Make sure that the applicator card does not slip from under the rear glass roof panel as the card is rotated around the corners.
    G11289750
    1. Carefully slide the applicator card along the edge of the rear fixed glass panel from position 2 past the centre of the vehicle.
    2. If required, apply more fluid to the applicator card and repeat the above step.
    3. Remove and clean the applicator card.
  8. Repeat steps 4 to 7 for the other side of the vehicle.
  9. Wipe away any excess fluid.
