Component Location - Sheet 2 Of 2

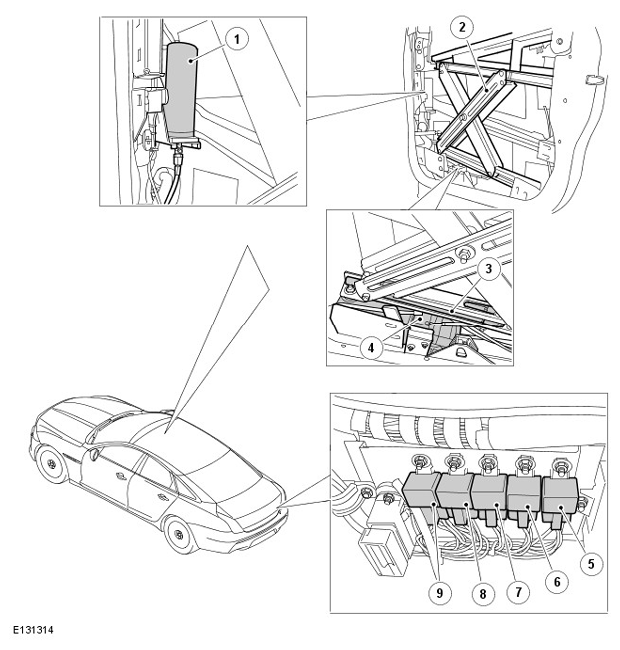

G11289747
ITEM DESCRIPTION
1 Hydraulic reservoir
2 Window regulator
3 Hydraulic ram
4 Hydraulic pump and motor
5 Armored rear window heater relay
6 Left front window close relay
7 Left front window open relay
8 Right front window close relay
9 Right front window open relay
