Tire Pressure Monitoring System (TPMS) Receiver (G1005885): Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • The tire pressure monitoring system receiver is installed in the same location on both LHD and RHD vehicles.
  1. Switch the ignition off.
  2. Remove the left-hand floor console side trim panel.

    Refer to: Floor Console Side Trim Panel (501-12 Instrument Panel and Console, Removal and Installation).

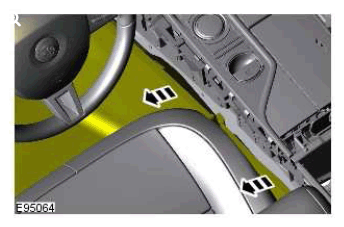

  3. G11420609

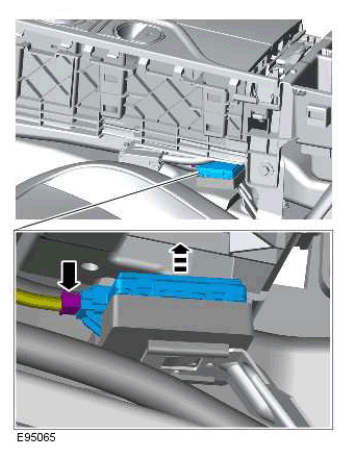

  4. G11420610
