Tire Pressure Monitoring System (TPMS) Rear Antenna (G1061731): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Wheel and Tire  (Removal and Installation).

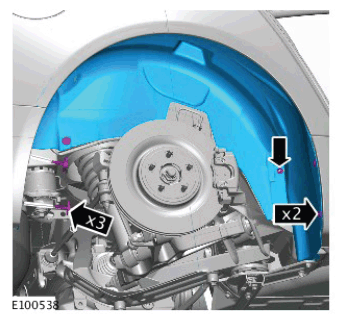

  3. G11420602

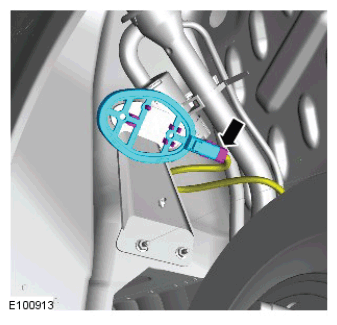

  4. NOTE: Note the position of the component before removal.
    G11420603
