Tire Pressure Monitoring System (TPMS) Module (G965366): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Switch the igntion off.
  2. Remove the right-hand front seat.

    Refer to: *** Front Seat (501-10 Seating, Removal and Installation).

  3. Refer to: B-Pillar Lower Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

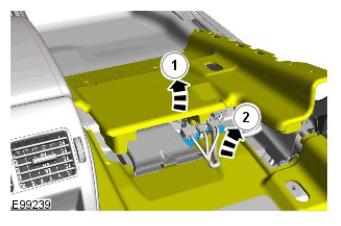

  4. G11420604

    Detach and reposition the floor covering.

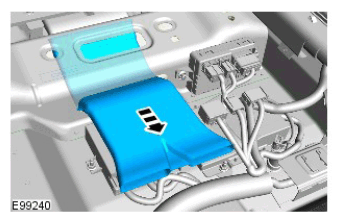

  5. G11420605

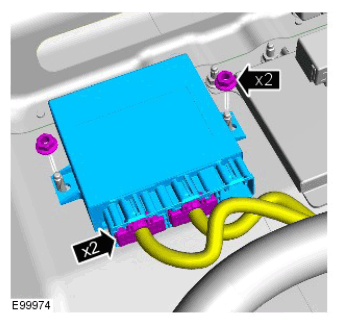

  6. G11420606
