Tire Pressure Monitoring System (TPMS) Front Antenna (G1061730): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

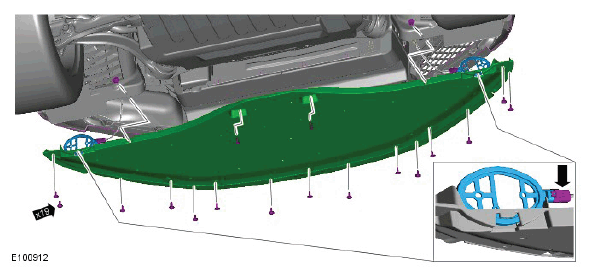

  2. NOTE:
    • This step requires the aid of another technician.
    • Lower the radiator splash shield enough to access the tire pressure monitoring system front antenna.
    • Note the position of the component before removal.
    G11420601
