Tire Low Pressure Sensor (G1062014): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Wheel and Tire  (Removal and Installation).
  3. Remove the tire from the wheel, release the tire bead from the rim 180 degrees from the valve.

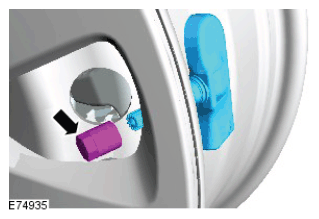

  4. G11420597
  5. G11420598
    • Discard the tire valve and retaining nut.
