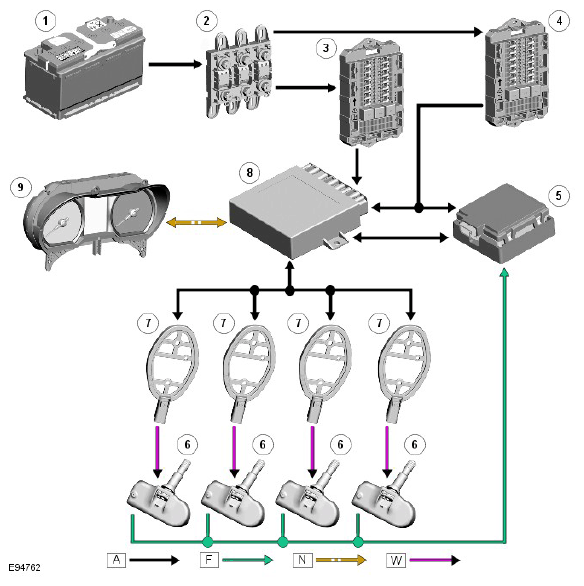

Control Diagram
NOTE:
A
= Hardwired; F
= RF Transmission; N
= Medium speed CAN bus; W
= LF Transmission
| ITEM |
DESCRIPTION |
| 1 |
Battery |
| 2 |
Megafuse (250A) |
| 3 |
CJB (central junction box) |
| 4 |
RJB (rear junction box) |
| 5 |
TPMS receiver |
| 6 |
Tire pressure sensors |
| 7 |
Initiators |
| 8 |
TPMS module |
| 9 |
Instrument cluster |
