Tire Pressure Sensor

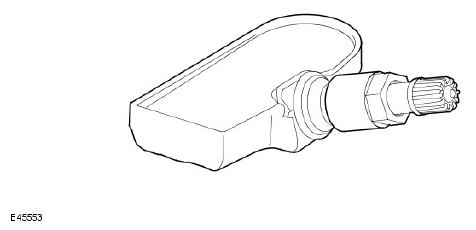

The TPMS uses active tire pressure sensors which are located on each wheel, inside the tire cavity. The sensor incorporates the tire valve and is secured in the wheel by a nut on the outside of the wheel. The sensor contains a Printed Circuit Board which houses a PTC (positive temperature coefficient) sensor, a Piezo pressure sensor, a radio receiver and transmitter and a lithium battery.

The tire pressure sensors use the PTC sensor and the Piezo sensor to periodically measure the pressure and temperature of the air inside the tire. The data is transmitted by RF data signals at either 315 MHz or 433 MHz dependant on market requirements.

The RF transmission from the sensor contains a unique identification code in its transmission data. This allows the TPMS to identify the wheel on the vehicle. If the sensor is replaced on a wheel, the new sensor identification will be learnt through the learn and location process.

The tire pressure sensor can also detect when the wheel is rotating.

In order to preserve battery power, the sensor uses different transmission rates when the wheel is stationary or moving.
