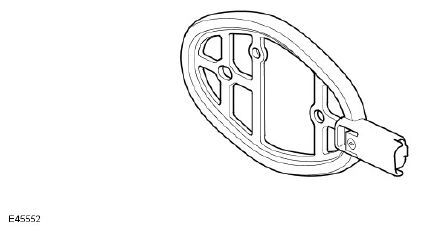

Component Description: Initiator

Each initiator has a connector which connects to the vehicle body harness. The initiator is a passive, LF transmitter. The initiators transmit their signals which are received by the tire pressure sensors, prompting them to modify their mode status.

The TPMS module energizes each initiator in turn using LF drivers. The corresponding tire pressure sensor detects the LF signal and responds by modifying the mode status within the RF transmission.
