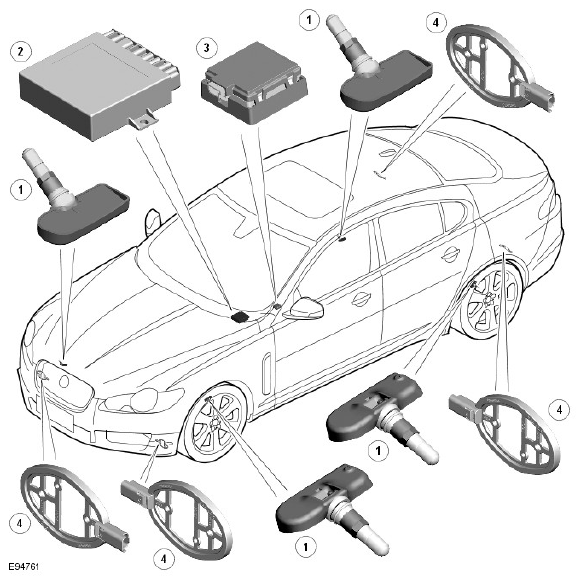

Tire Pressure Monitoring System (TPMS) Component Location

G11420568
ITEM DESCRIPTION
1 Tire pressure sensor
2 Tire pressure monitoring system module
3 Tire pressure receiver
4 Tire pressure monitoring system initiator
