Front Toe Adjustment (G1006288)

Procedure

57.65.01

FRONT WHEEL ALIGNMENT - CHECK AND ADJUST

ALL DERIVATIVES

0.7

CAUTION:

Make sure the vehicle is on a flat level surface.
Make sure the tire pressures are within specification.
Make sure that only the manufacturers' recommended four wheel alignment equipment is used.
Make sure the steering is in the straight ahead position.

For wheel alignment information, refer to the suspension specification.
For additional information, refer to Specifications .
Check the tie rod ends, suspension joints, wheel bearings and wheels and tires for damage, wear and free play.
Adjust or repair any worn, damaged or incorrectly adjusted components.
Check and adjust tire pressures.
Position the vehicle on a 4 post lift.
Release the vehicle parking brake.
Vehicles with air suspension
For additional information, refer to Air Suspension Manual Tight Tolerance Setting Mode/ ACTIVATION (General Procedures).
For additional information, refer to Air Suspension Manual Tight Tolerance Setting Mode/ DEACTIVATION (General Procedures).
Using only four-wheel alignment equipment approved by Jaguar, check the wheel alignment.

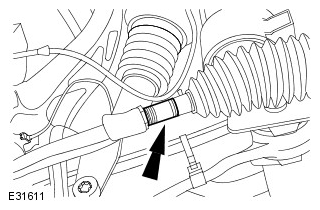

NOTE: LH illustration shown, RH is similar.

To adjust, loosen the tie rod end lock nuts.
CAUTION: Do not allow the gaiter to twist.
NOTE:
- Both tie rods must be rotated by an equal amount.
- LH illustration shown, RH is similar.
Adjust the front toe.

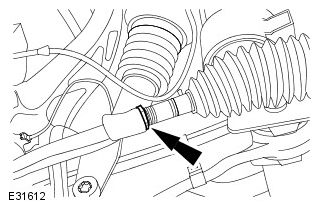

NOTE: LH illustration shown, RH is similar.

Tighten the tie rod end lock nuts to 55 Nm.
Using only four-wheel alignment equipment approved by Jaguar, check the wheel alignment.
