Shock Absorber And Spring Assembly - SPORTBRAKE, Vehicles Without: RS Body Style (G1568765): Installation

  1. NOTE: Make sure that these components are installed to the noted removal position.

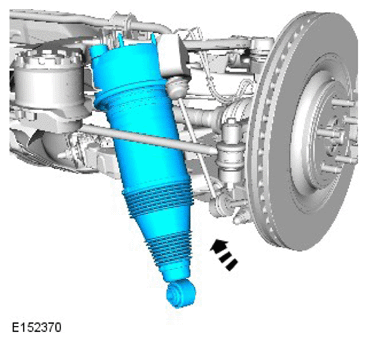

  2. G11589834

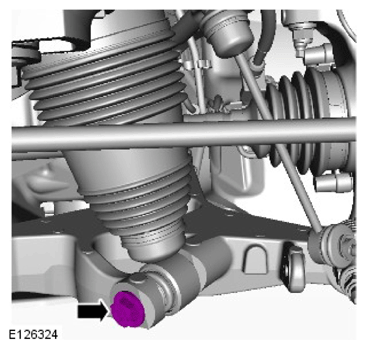

  3. G11589835

    Do not fully tighten at this stage.

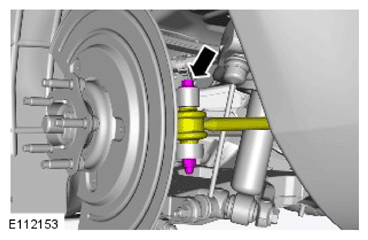

  4. G11589836

    Torque Specification: 63 Nm

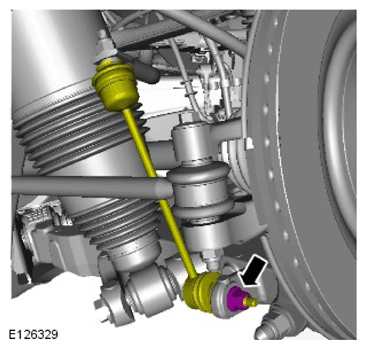

  5. G11589837

    Torque Specification: 48 Nm

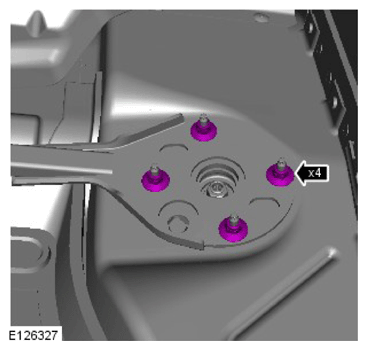

  6. G11589838

    Torque Specification: 28 Nm

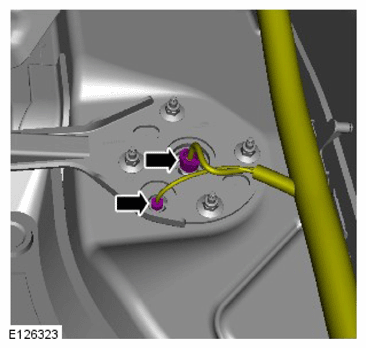

  7. G11589839

    A new air line connector must be installed.

    Refer to: Air Line Connector (General Procedures).

    Torque Specification: 5 Nm

  8. Refer to: Wheel and Tire (Removal and Installation).
  9. Refer to: Air Suspension System Depressurize and Pressurize (General Procedures).

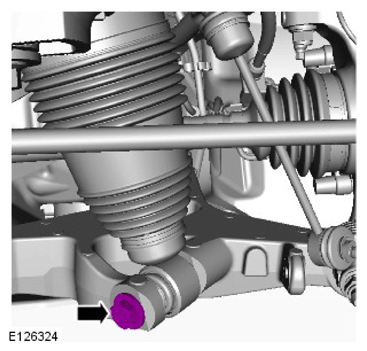

  10. G11589840

    Tighten the bolt at normal ride height.

    Torque Specification: 133 Nm

  11. Refer to: Loadspace Left Trim Panel - Sportbrake (Removal and Installation).

    Refer to: Loadspace Right Trim Panel - Sportbrake (Removal and Installation).
