Front Suspension Vertical Accelerometer (G1058059): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  2. Refer to: Fender Splash Shield (Removal and Installation).
  3. CAUTION: The accelerometer is an extremely delicate component and can easily be rendered unserviceable. Never use an accelerometer which has been dropped or subjected to mistreatment of any type.

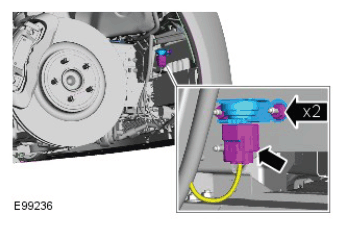

    G11420653
    • Torque Specification: 5 Nm
