Air Suspension Reservoir (G1568760): Removal

WARNING: The air suspension is pressurised. Make sure dirt or grease does not enter the system. Always wear hand, eye and ear safety standard protection when working on the system.

NOTE:

Removal steps in this procedure may contain installation details.
Some components shown removed for clarity.
Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Air Suspension System Depressurize and Pressurize .
Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (General Procedures).

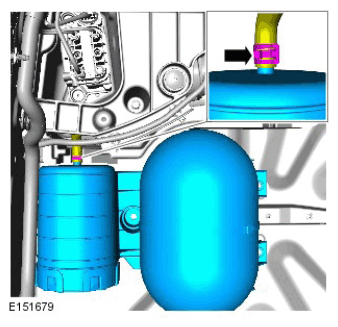

CAUTION: Using a suitable blanking plug, blank off the end of the air pipe to prevent dirt ingress.

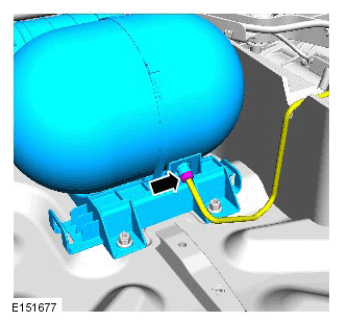

Discard the air line connector.

Refer to: Air Line Connector (General Procedures).

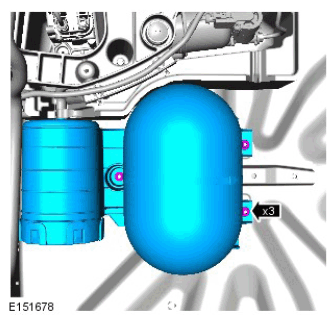

- Torque Specification: 5 Nm
- Torque Specification: 9 Nm
