Air Suspension Control Module - 4-Door (G1311860): Removal

CAUTION: Calibration of the air suspension system must be carried out after the following components have been replaced: air suspension control module, suspension height sensor, suspension components and body panels incorporating suspension fixing points.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
Refer to: Battery Disconnect and Connect (General Procedures).

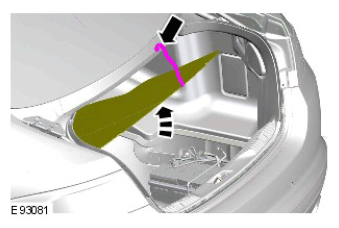

Refer to: Loadspace Trim Panel RH - 4-Door (Removal and Installation).

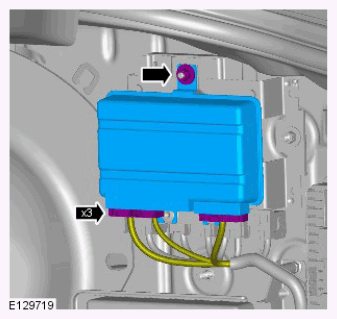

- Torque Specification: 7 Nm
