Air Suspension Compressor (G1568759): Removal
WARNING:
The air suspension is pressurised. Make sure dirt or grease does not enter the system. Always wear hand, eye and ear safety standard protection when working on the system.
NOTE:
- Removal steps in this procedure may contain installation details.
- Some components shown removed for clarity.
- Some variation in the illustrations may occur, but the essential information is always correct.
- Refer to: Air Suspension System Depressurize and Pressurize .
- Disconnect the battery ground cable.
Refer to: Battery Disconnect and Connect (General Procedures).
-

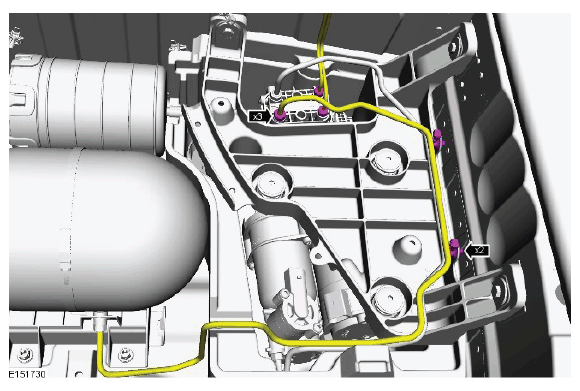

CAUTION: Using a suitable blanking plug, blank off the end of the air pipe to prevent dirt ingress.
Discard the air line connectors.
Refer to: Air Line Connector (General Procedures).
Torque Specifications:
6 mm pipe 3.5 Nm
4 mm pipe 2 Nm

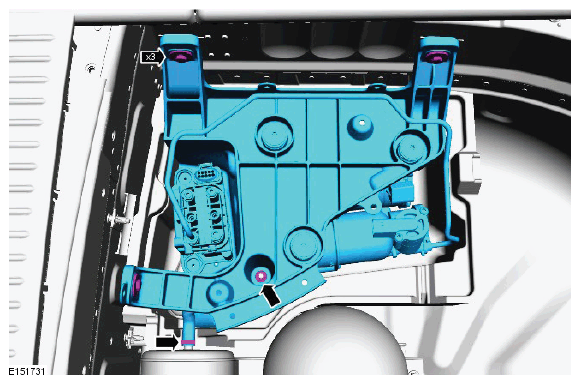

- Torque Specification: 9 Nm
